The DOM-24 detects the electrical capacity and temperature with a sensor and computes the TPM as a correlation of both. It can also calculate the AV of both using the correlation between them and the TPM.
Regularly consumed cooking oils come in a variety of types, including olive oils, vegetable oils, corn oils, perilla oils, cottonseed oils, and safflower oils. Use Quality standards and indicators to deliver delicious and safe products to consumers. Consistently stable production, sensible quality assurance, and maintaining the best standards and procedures are vital.
Support HACCP! Digital Frying Oil Monitor From test paper to digital display Quantify the oxidation of oil For cost control due to soaring oil prices! With communication function, no on-site recording required!
| DOM-24 | Test Strip | Titration | |
|---|---|---|---|
| Ease of measurement |
 No reagent, no wasteSimple operation |
 Waste disposal is required |
It takes time and effort to prepare and clean up |
| Measurement time |
Measurement time is approximately 30 seconds |
It takes about 1 to 4 minutes |
Measurement is time consuming and requires knowledge and experience |
| Display |
Anyone can read the digital display |
Individual difference, subjective judgements |
Difficult to read measurements |
DOM-24
Identifies the Best Time to Replace Oil
・Allows you to safely cook delicious fried foods
・Lowers oil usage and reduces waste
・Lower costs by using oil right up until it needs to be replaced
Specifications
| Cat.No. | 9341（DOM-24） 9347（DOM-24 X3） |
|---|---|
| Measurement range | TPM : 0.5 to 40.0% AV : 0.00 to 9.99 Temperature (˚C) : 0 to 225˚C Temperature (˚F) : 32 to 437˚F |
| Resolution | TPM : 0.5% AV : 0.01 Temperature : 1˚C⁄1˚F |
| Measurement accuracy | Approx. ±0.2(Varies with user’s scale setting.) TPM : ±2.0% Temperature : ±1˚C / ±2°F (20 to 200˚C / 68 to 392°F) |
|---|---|
| Temperature compensation range | 0 to 225˚C (accuracy guaranteed from 20 to 200˚C) 32 to 437°F (accuracy guaranteed from 68 to 392°F) |
| Power supply | Size AAA alkaline battery × 2 |
| International protection class | IP67 |

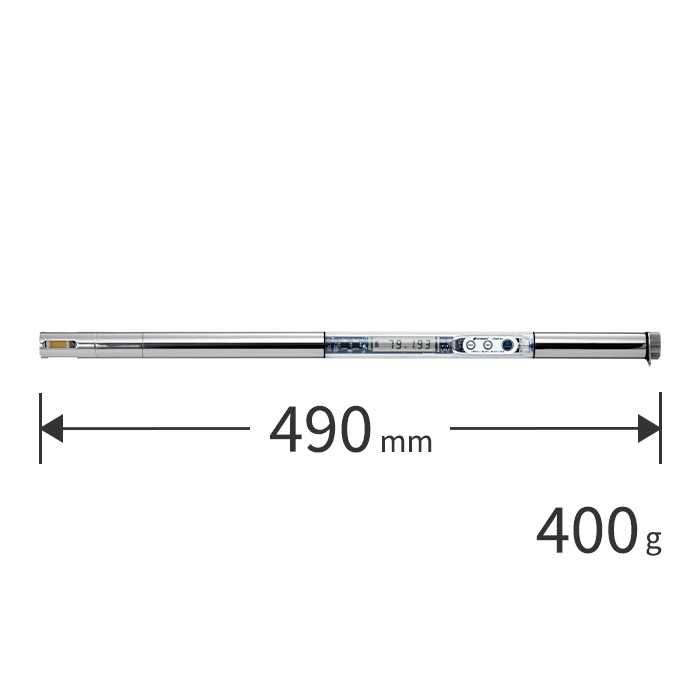

| Dimension and weight | 22(ø)×490(w)mm, 400g(Main unit only) |
Stable and reliable measurement values
The DOM-24 is equipped with automatic temperature compensation (ATC), making it capable of measurements at a wide temperature range of 0 to 225˚C. The DOM-24 can provide stable and reliable measurement values, even at high-temperatures.

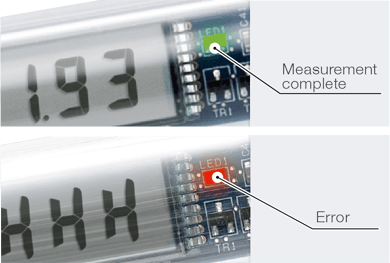

Easy confirmation with LED

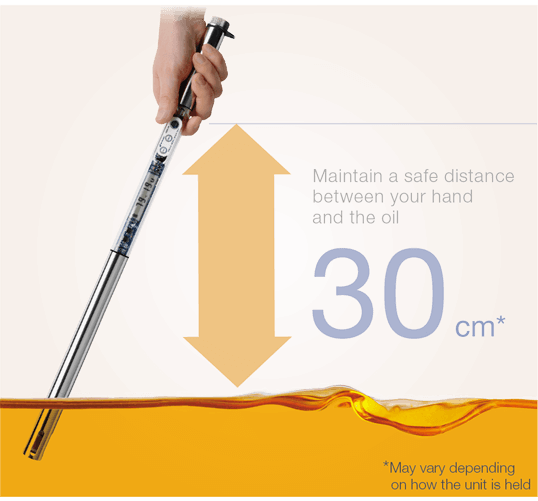

Avoiding burn injuries
To improve the safety of employees and contribute to the reduction in the risk of burns.
Can be used to stir the oil
Due to oil having layers, temperature and degradation levels may not be uniform throughout. Stirring the oil with the product can produce more consistent results.

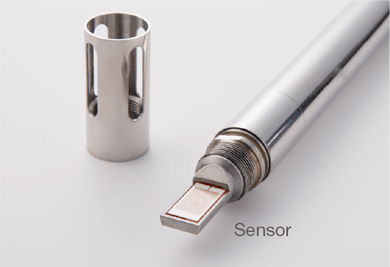

Sturdy construction with a protective cover
Impact-resistant body
Confirmed to continue working even if dropped accidentally from waist height so you can relax and let all of your employees use it without worry.
Rated IP67 (Water resistant)
Designed to be used safely around water. Wash away stubborn oil stains with regular dish soap under running water. Instrument will survive accidentally being dropped in water.
