ECOPROBE 5

Advanced Soil Gas Analyzer for Environmental & Industrial Applications

Discover What Is Hidden in the Soil

The ECOPROBE 5 is a ruggedized handheld device specially designed for in-field use. It delivers highly sensitive and selective detection with sub-ppm performance for reliable soil gas analysis and contamination surveys.

With simultaneous PID (Photoionization Detection) and IR (Infra-red Spectroscopy) measurement, the ECOPROBE 5 enables accurate identification of volatile compounds while minimizing interference from natural biological methane generation in soil.

---

Highlights

• Simultaneous PID and IR measurement
• Great sensitivity and selectivity
• Various probes for different soil porosity
• Outstanding reliability
• User-friendly operation
• Rugged handheld design for field applications
• Whole-day battery endurance
• GPS-compatible data logging

---

Applications

• Pipelines leakage detection
• Gas tank leakage testing

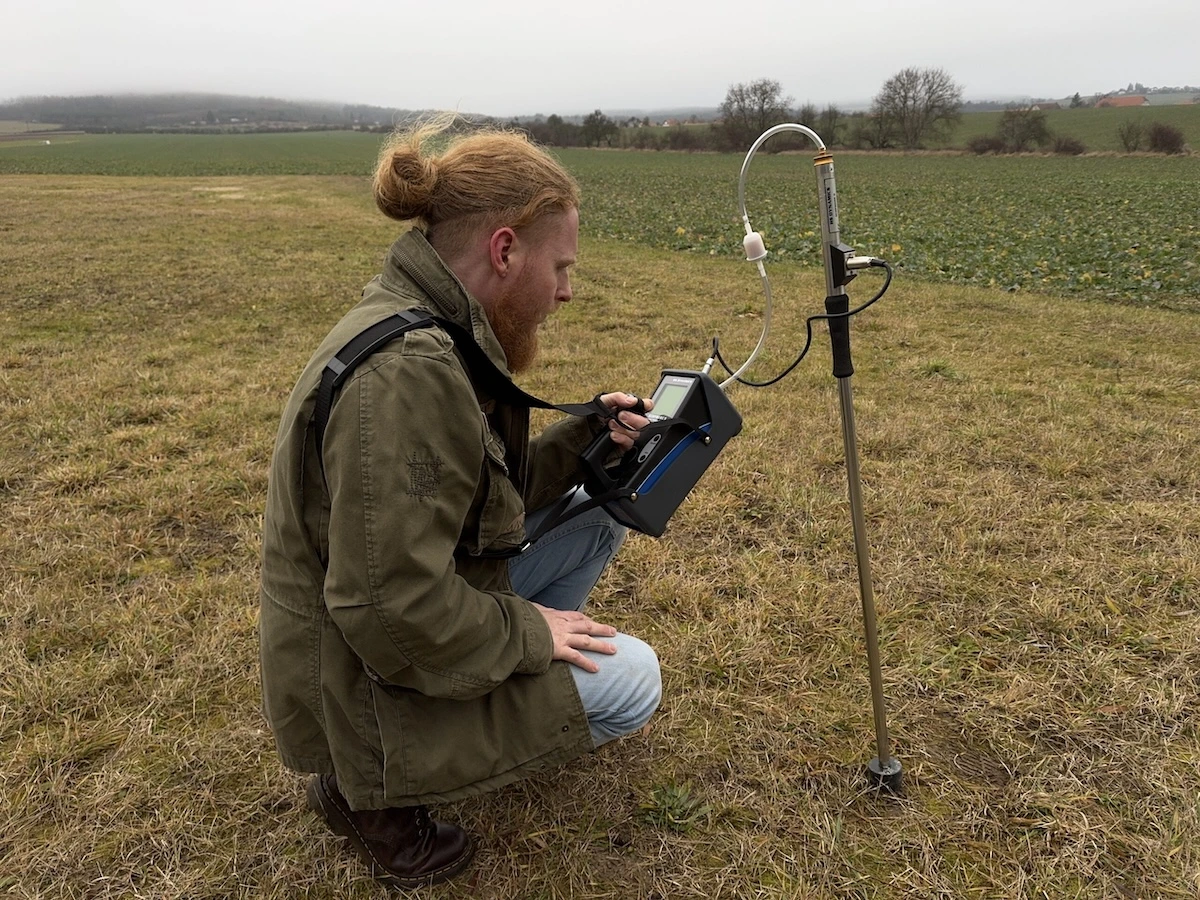

• Soil contamination surveys
• Environmental monitoring
• Industrial site inspections
• Petroleum hydrocarbon detection

---

Simplify Your Workflow

The ECOPROBE 5 can store up to 100,000 measurements internally. When connected to the optional GPS module, measurements can be downloaded to a PC in multiple data formats for easy analysis and plotting.

This allows users to quickly visualize contamination patterns and generate detailed environmental reports.

---

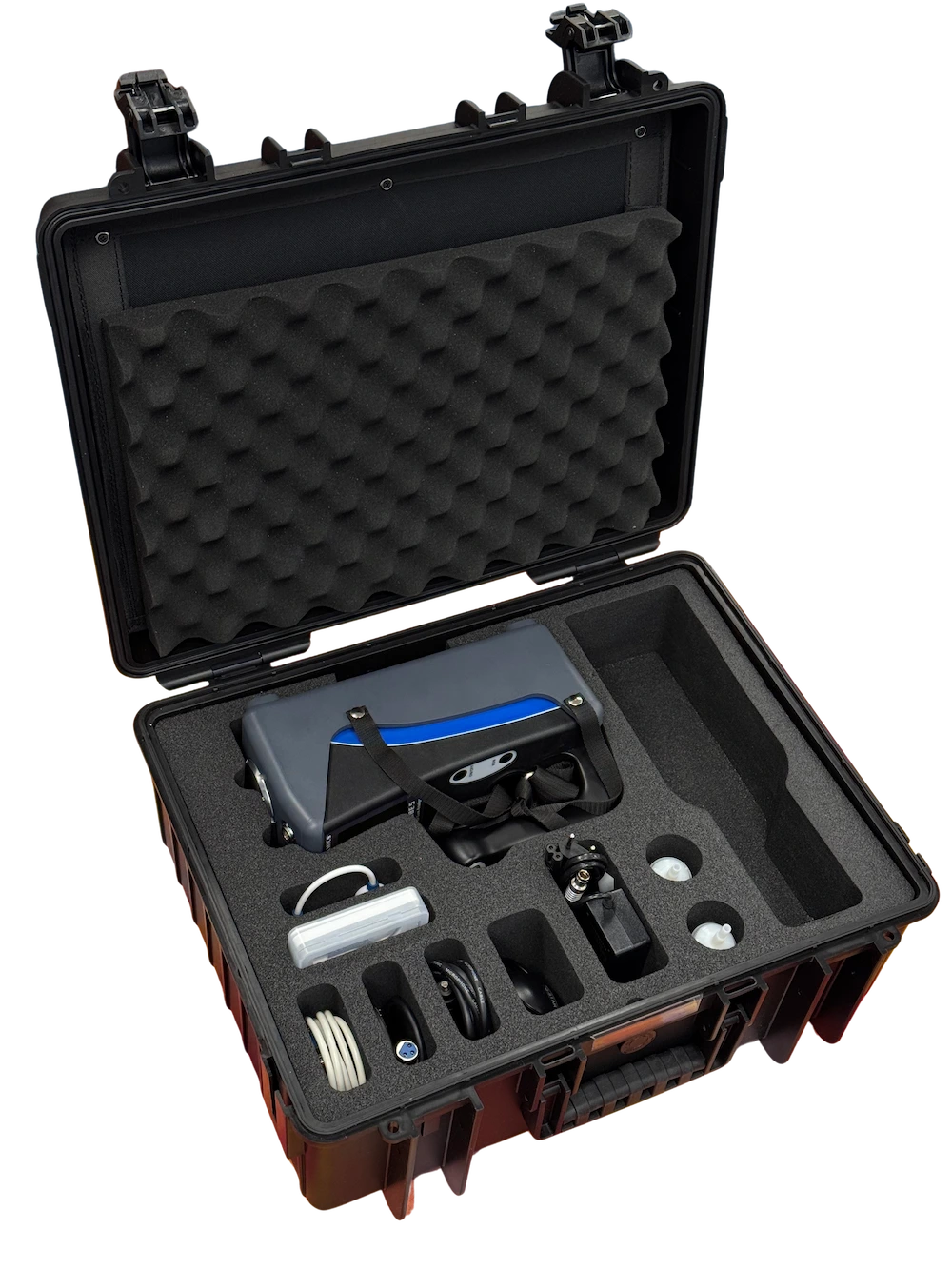

Everything You Need

All required accessories are delivered in a heavy-duty sealed transport case, including:

• Calibration kit
• Connection accessories
• Charging equipment
• Probes and adapters
• RS-232 to USB converter

Everything needed for operation and calibration is readily available in one portable package.

---

Connect Without Limits

Thanks to the proprietary multifunction connector, the ECOPROBE 5 supports:

• Device charging
• GPS module connection
• Probe with thermometer attachment
• PC connectivity via RS-232 / USB converter

---

Specifications

General Overview

Detection Principle

• Photoionization Detection (PID)
• Infra-red Spectroscopy (IR)

Detected Compounds

PID:

• Volatile Organic Compounds (VOC)
• Toxic gases
• Chlorinated hydrocarbons
• Excludes methane

IR:

• Methane
• Petroleum hydrocarbons
• CO₂
• H₂S (optional)
• N₂O (optional)

Operating Modes

• Handheld portable device
• Autonomous remotely controlled monitoring station

Control Interface

• User-friendly 4-button cross control

---

Photoionization Detection (PID)

Detection Limit

• 0.1 ppm range
• 1 ppb in Hi-Sense mode

Dynamic Range

• Up to 4000 ppm

Response Time

• 0.08 seconds

Sampling Rate

• 10 measurements per second

Zero Stability

• 0.5 ppb using automatic zeroing

Ion Lamp Options

• Standard: 10.6 / 10.2 eV
• Optional: 9.6 eV or 11.7 eV

---

Infra-red Spectroscopy (IR)

Independent Channels

Up to five channels:

• Methane
• Petroleum hydrocarbons
• CO₂
• H₂S (optional)
• N₂O (optional)

Detection Limits

• Methane: 200 ppm
• Petroleum hydrocarbons: 200 ppm
• CO₂: 50 ppm

Dynamic Range

• Up to 500,000 ppm

Response Time

• 0.5 seconds

Sampling Rate

• 10 measurements per second

---

Additional Measurements

Oxygen

• 0 – 100 %

Soil Temperature

• Accuracy: ±0.1 °C

Sampled Gas Temperature

• Accuracy: ±0.1 °C

Ambient Pressure

• Accuracy: 0.1%
• Resolution: 0.01%

---

Physical Specifications

Dimensions

• 260 × 170 × 105 mm (including handle)

Weight

• 3.0 kg

Shipping Weight

• 13 kg including:
  • Transport case
  • Probes
  • Calibration kit
  • Accessories

---

Power Supply

Battery

• Internal rechargeable battery
• Whole-day operation

Charging

• 100 – 240 VAC charger included

---

Connectivity

Cable Connection

• RS-232
• USB 2.0 converter included

Wireless

• Infrared interface

---

Support & Maintenance

Training

• No special operator training required

Factory Check & Calibration

• Available remotely through internet connection

---

Environmental Safety

Radioactive Materials

• None

Toxic Materials

• None (excluding battery)

Recyclability

• Fully recyclable by manufacturer
