EXPLONIX-RS Dynamics

The EXPLONIX uses the unique IRSSIL-I technology for both fast and precise detection and the identification of explosives traces, gunshot residuals and radioactive contrabands in a wide field of operations. Its detection and identification capability covers a wide range of explosives, including homemade explosives as well as non-tagged explosives, gunshot residuals and radioactive contrabands from military and industrial sources.The EXPLONIX is a highly sensitive, portable, multi-functional explosives/radiological compounds detection and analytical system offering optimal power & flexibility for fast, reliable detection and identification of a wide range of explosive and radioactive material traces.

Here is the structured version of the EXPLONIX product content:

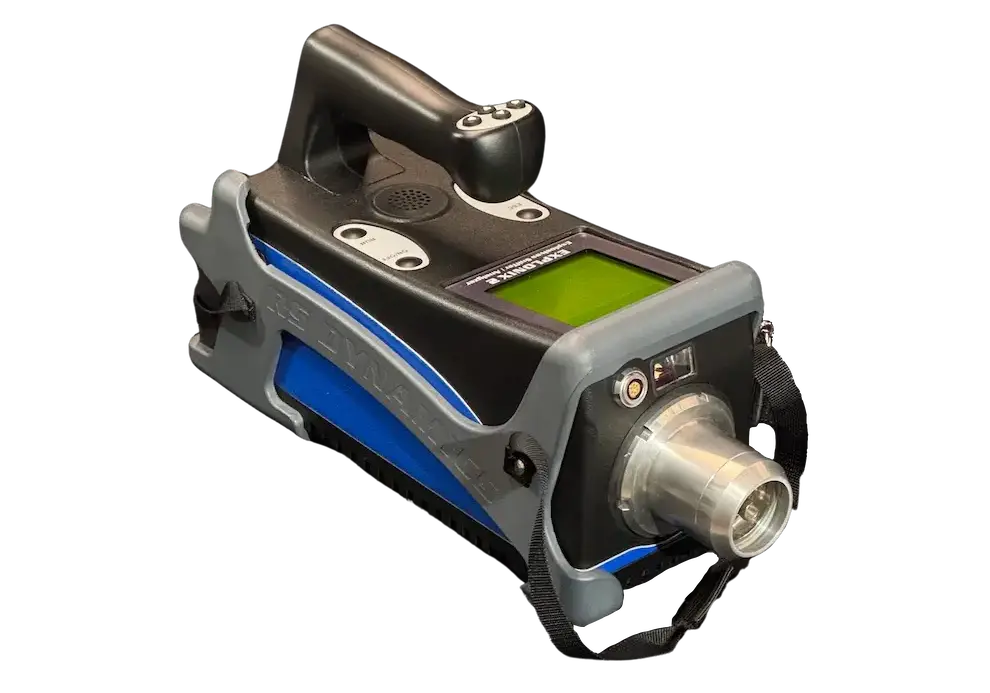

EXPLONIX – Explosive Trace Detector

Featured Highlights

  • Detects and identifies all explosives, including TATP
  • Excellent sensitivity and outstanding robustness
  • Highly resistant to interfering agents
  • Detects gun shot residue (GSR)
  • Optional radiation detection and source identification
  • Rapid start-up and fast scan times

Find Every Explosive Trace

The EXPLONIX enables users to detect invisible traces of explosives that may reveal bombs, smugglers, or terrorist threats. Dedicated adapters are available to maximize detection performance for various applications.


Reveal Gamma-Ray Radiation

EXPLONIX can be optionally equipped with a gamma-ray radiation spectrometer. This enhancement allows the device to function as a Geiger counter, providing alerts for radioactive materials and enabling radionuclide identification.

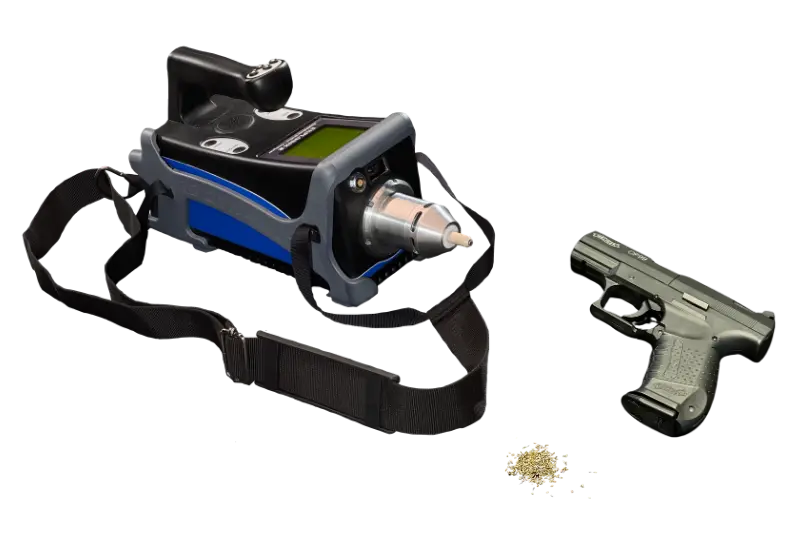

Detect Gun Shot Residue

Using a dedicated adapter, EXPLONIX can detect solid particles released during gunfire, enabling effective gun shot residue (GSR) analysis.


Evidence Management

The EXPLONIX automatically assigns scanned BAR codes to the latest stored measurement, simplifying evidence tracking and documentation.


Ready for Duty

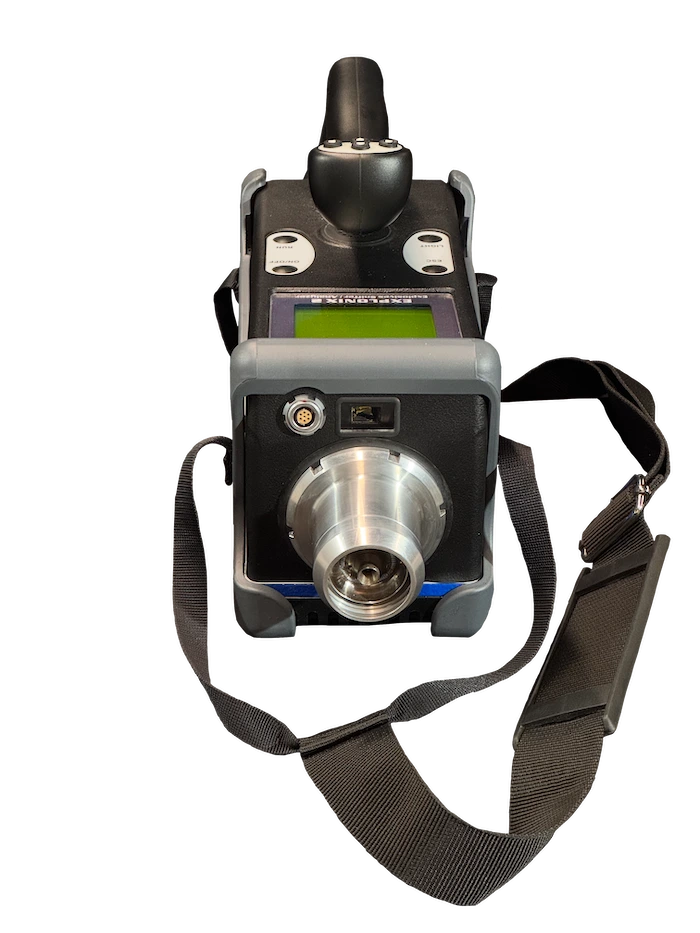

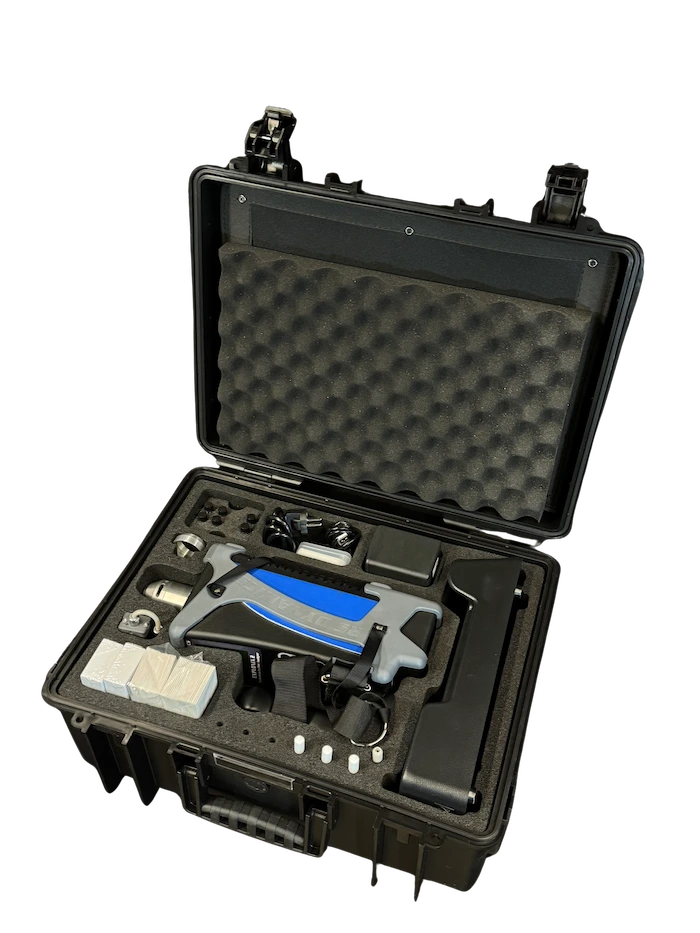

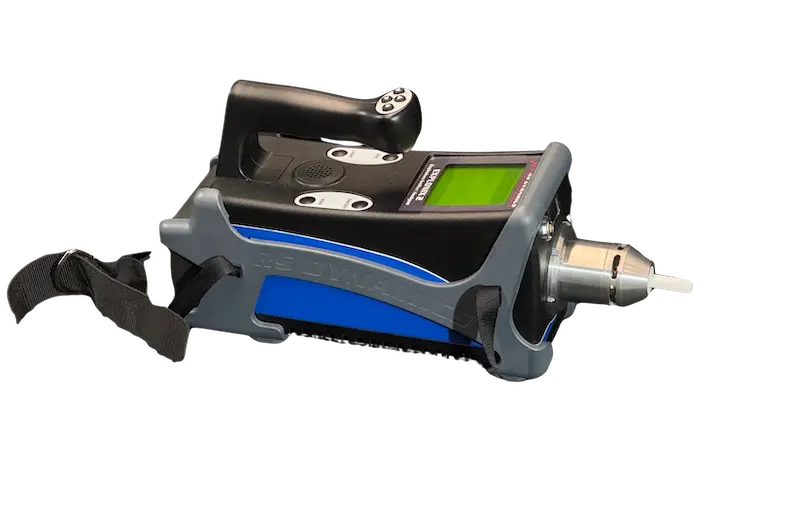

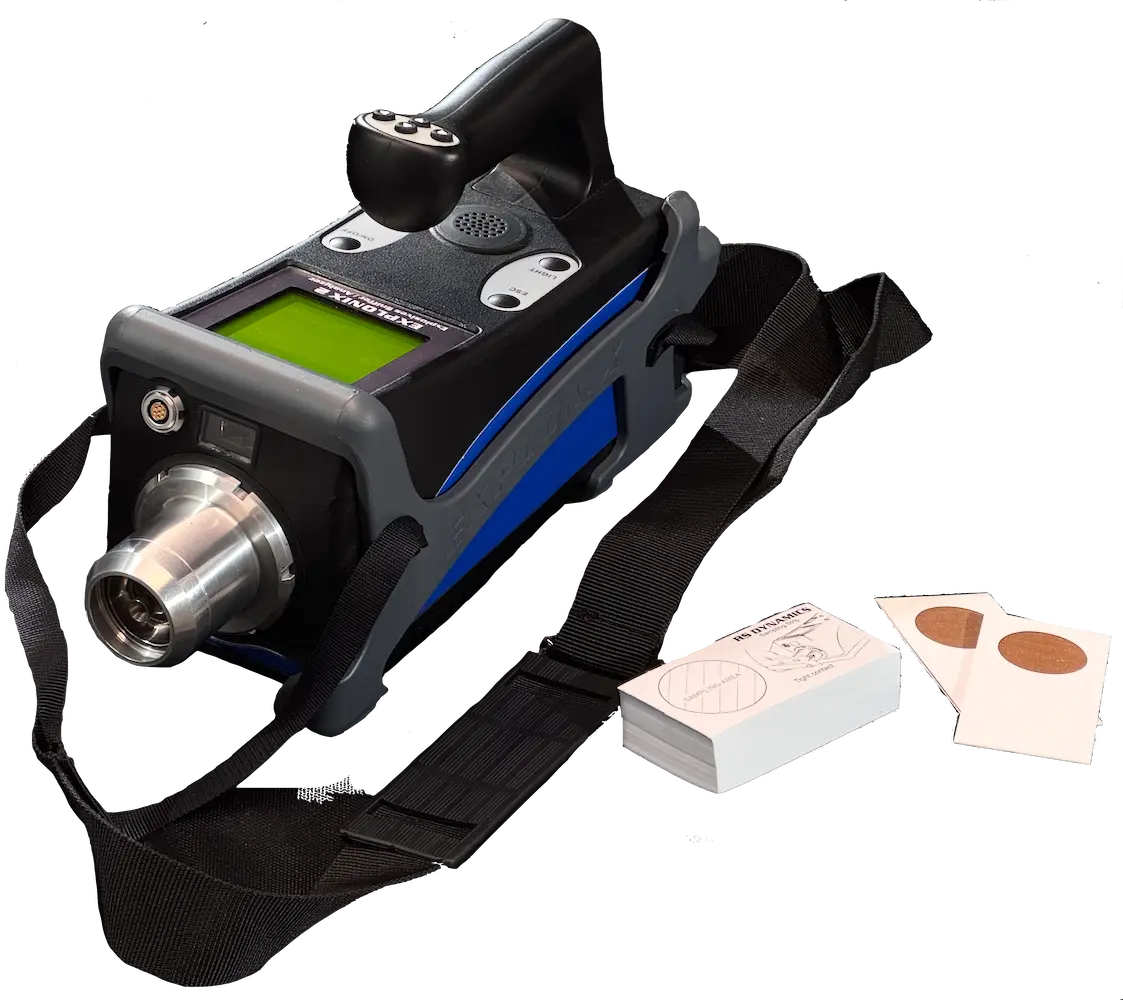

The EXPLONIX is supplied with a rugged rubber holster and shoulder strap for comfortable operation. The device and all accessories are packed in a heavy-duty protective case designed for harsh environments.

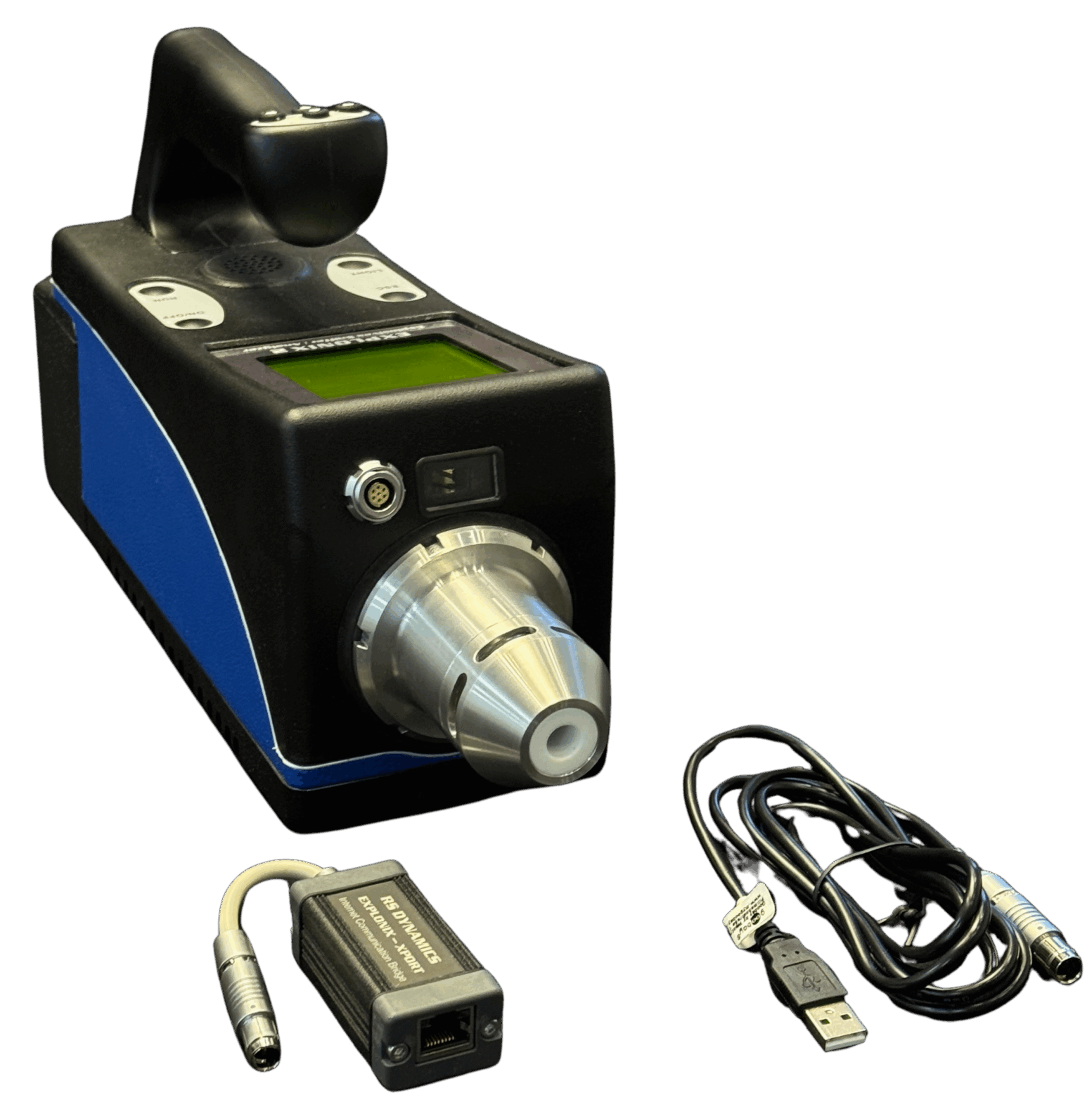

Connectivity Options

  • USB connection to PC
  • Ethernet connection via X-Port bridge
  • Optional Wi-Fi connectivity
  • Remote monitoring and control capability

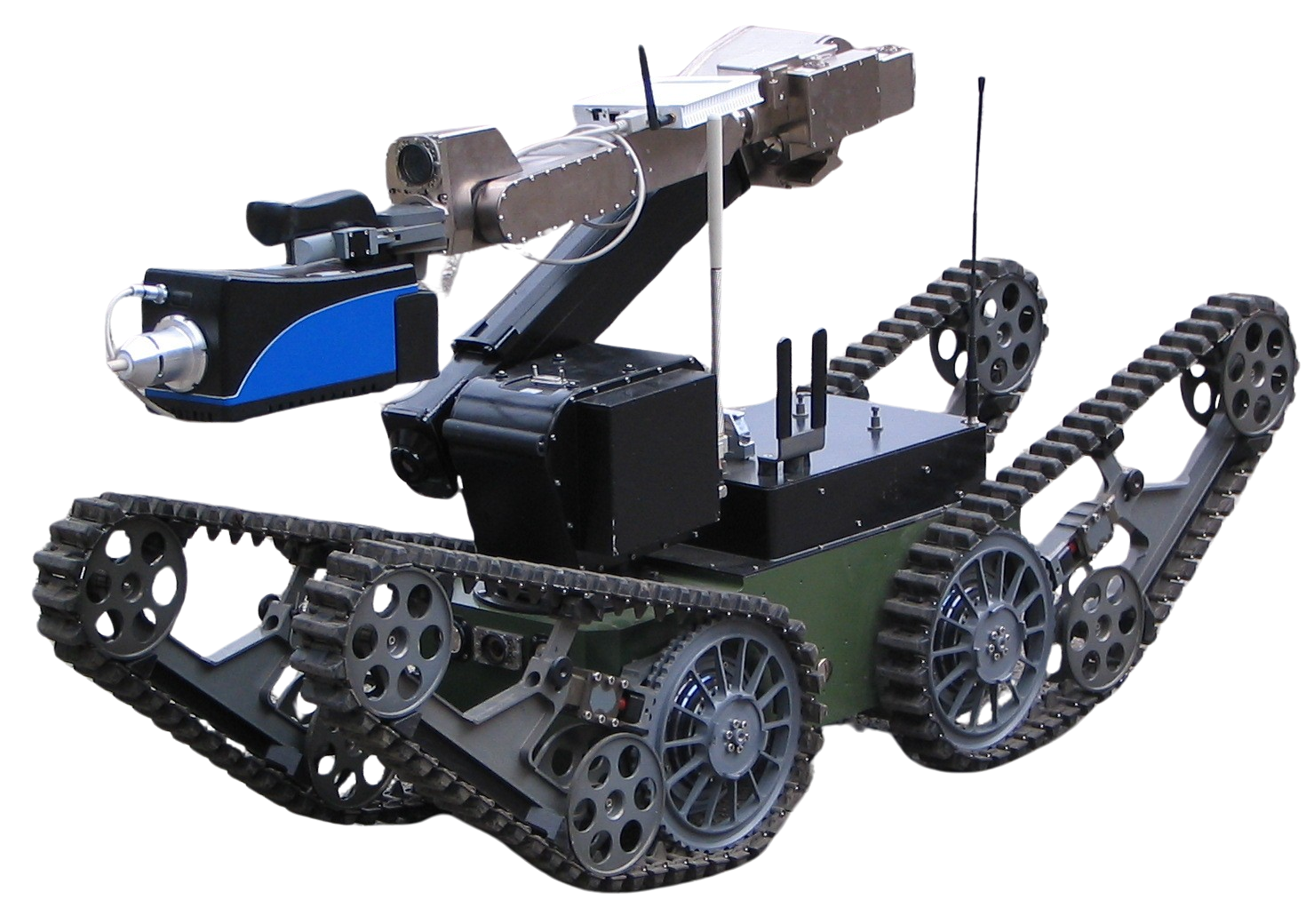

Robot-Friendly Operation

The EXPLONIX supports remote control through a PC application. It can be mounted on robotic arms and operated remotely through cable or Wi-Fi connections for enhanced operator safety.


Continuous Power Availability

  • Battery runtime up to 4 hours continuous operation
  • Dual-battery workflow capability

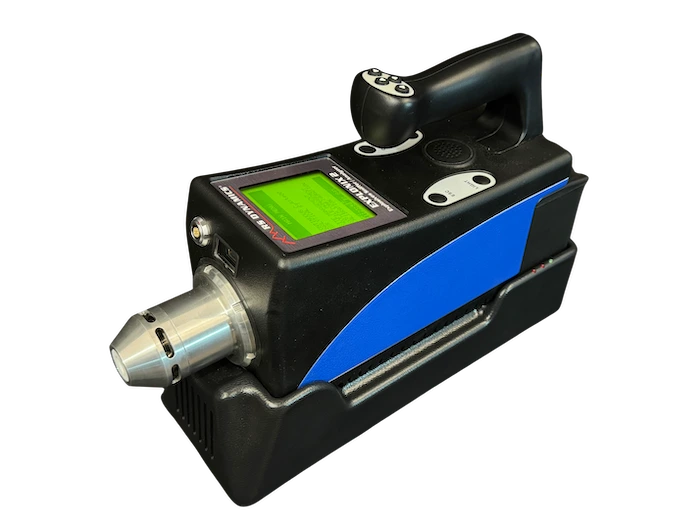

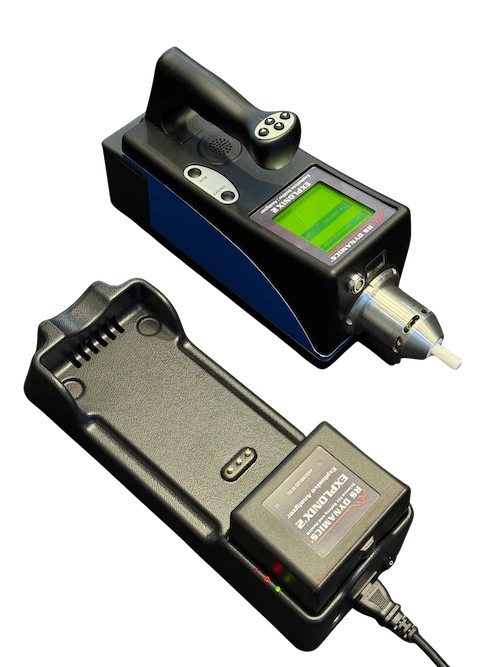

  • Docking station for charging batteries or stationary continuous use

Applications

  • Explosive trace detection
  • Bomb squad operations
  • Border and customs inspection
  • Military and defense operations
  • Gun shot residue analysis
  • Radiation detection and identification
  • Counter-terrorism operations
  • Remote robotic inspection systems

Technical Specifications

General Overview

Detection Principle

  • Infra Red Sampled Selective Luminiscence (IRSSIL)
  • Optional full-featured Gamma-Ray spectrometer

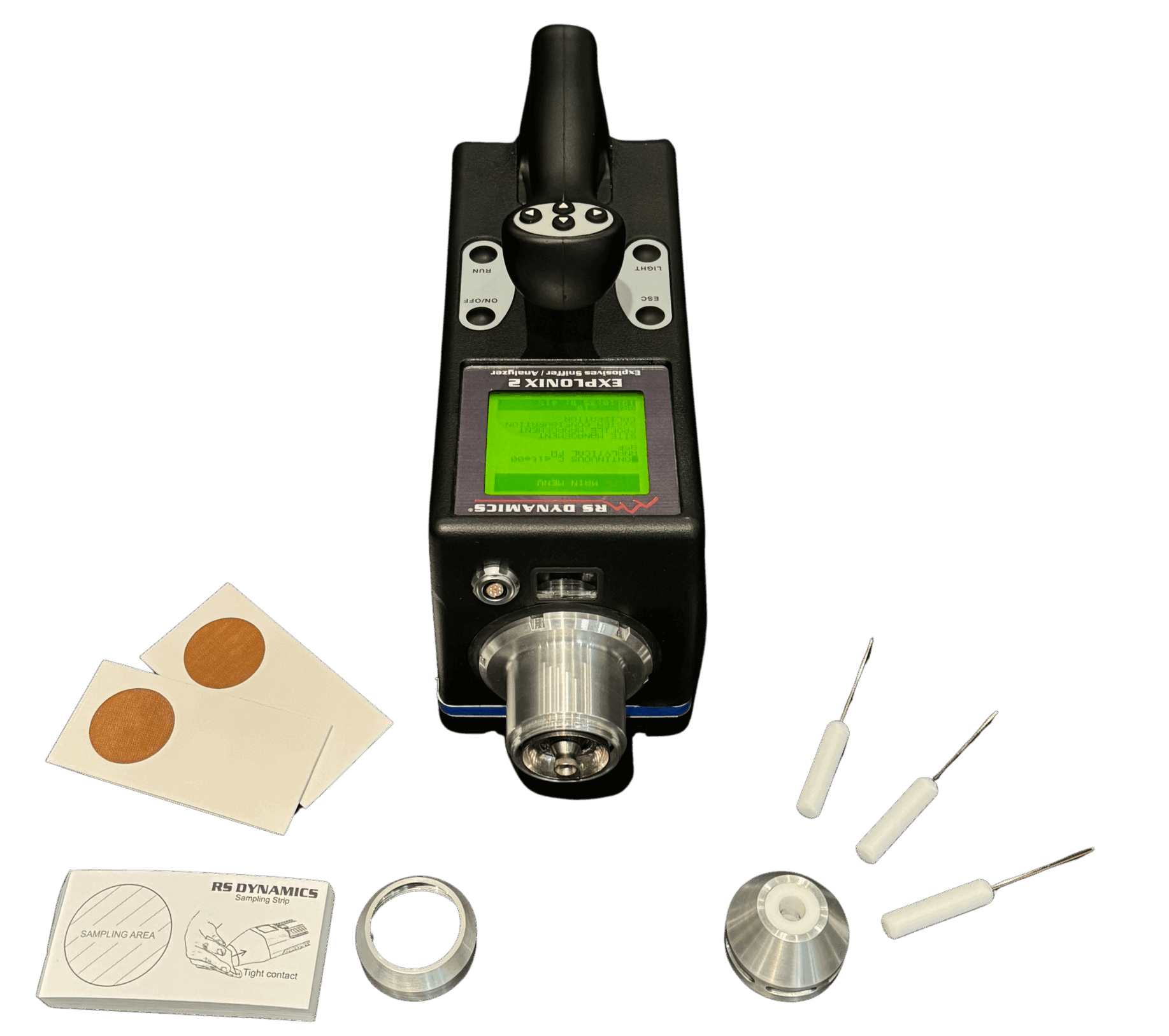

Sampling Procedures

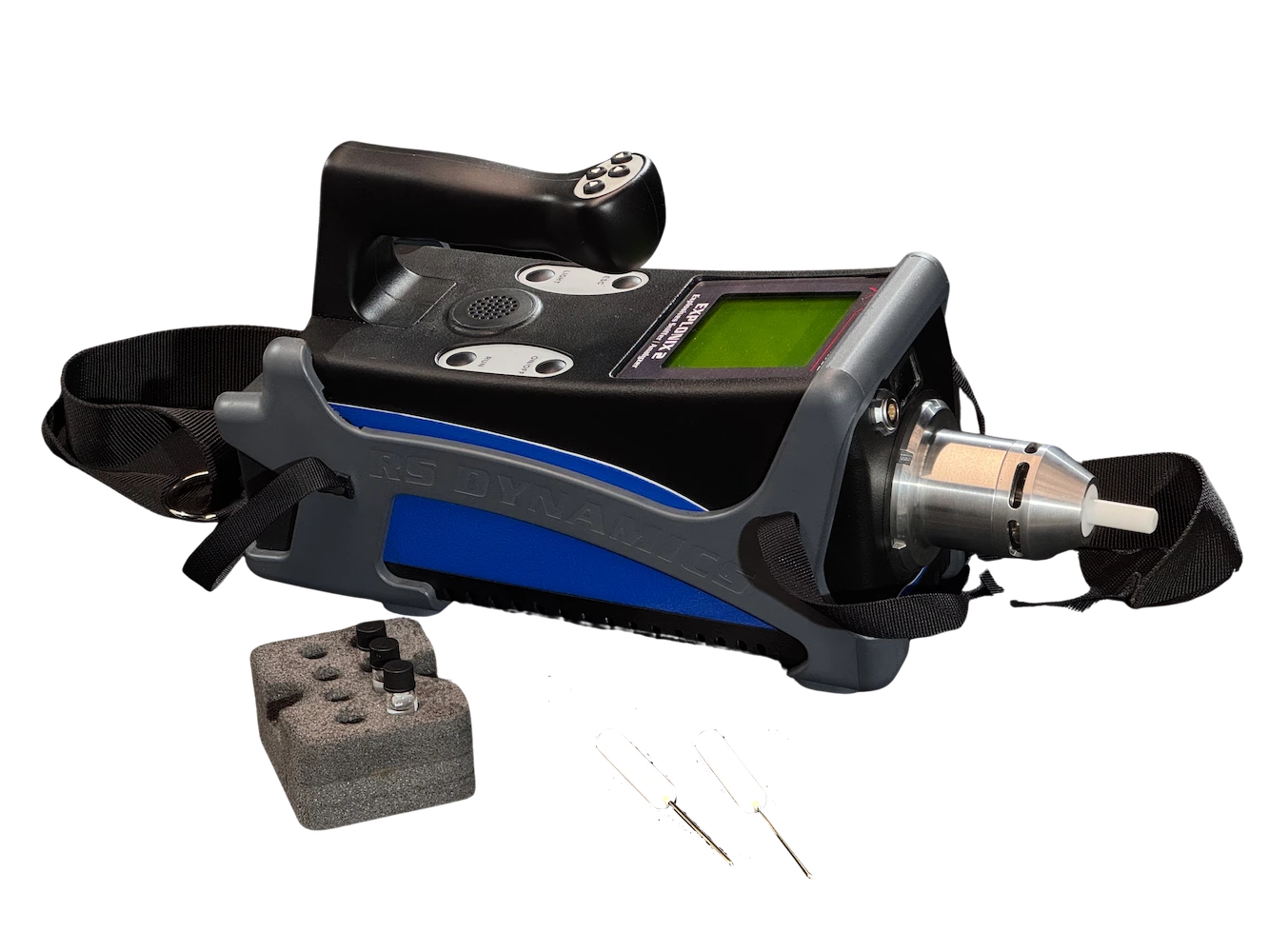

  • Particulate sampling using paper strips or gilt needle
  • Vapour sampling by direct sniffing
  • Gun shot residue sampling
  • Radionuclide radiation detection and identification

Sample Types

  • Explosive traces and vapours
  • Gun shot residue
  • Radioactive radiation (optional)

Detected Items

  • All known explosives and plastic explosives (PETN, RDX, HMX, etc.)
  • TATP and homemade explosives
  • Optional radionuclide detection

Operational Modes

  • Analytical mode
  • Cold mode for rapid detection
  • Continuous stationary mode
  • Gun Shot Residue mode
  • Optional radionuclide identification mode

Control Interface

  • User-friendly 4-button navigation control

Explosive & Gun Shot Residue Section

Start-Up Time

  • Cold start in under 1 minute
  • No bake-out cycle required

Detection Time

  • Approximately 1 second in vapour modes

Analytical Time

  • Less than 30 seconds in particulate mode

False Alarm Suppression

  • Resistant to interference from:
    • Perfumes
    • Diesel exhaust
    • Odors
    • Solvents
    • Other environmental contaminants

Cleaning Cycle

  • Typically 10 seconds

Radiological Section (Optional)

Sensitivity

  • 30 cps per MBq/m (137Cs)

Resolution

  • Better than 9% FWHM at 662 keV

Energy Range

  • 20 – 3000 keV

Library

  • Upgradable radionuclide identification library

PC Application

  • Spectrogram graphical output
  • Automatic background correction
  • Automatic calibration

Features

System Check

  • Automatic during start-up

Calibration

  • Automatic calibration for all channels

Presets

  • Manufacturer presets available
  • User-configurable profiles supported

Interface

  • Daylight-readable full graphic display
  • Sealed buttons operable with gloves
  • Integrated BAR code reader

Alarm System

  • Acoustic and visual alarms

Connectivity

  • USB 2.0
  • RJ45 Ethernet
  • Optional Wi-Fi

User Settings

  • Configurable through PC software

Remote Control

  • Supported through PC application
  • Compatible with robotic systems

Physical Specifications

Dimensions

  • 260 × 170 × 105 mm (including handle)

Weight

  • 3.2 kg without batteries
  • 3.9 kg including battery

Shipping Weight

  • 13 kg including:
    • Transport case
    • Calibration kit
    • Docking station
    • Accessories

Power Supply

Battery

  • 21V Li-ion battery
  • Up to 4 hours runtime in detection mode

Charging

  • 100 – 240 VAC docking station included

Consumables

Detection Cartridge

  • Supports approximately 6,000 – 10,000 scans

Sampling Strips

  • 3 packs included
  • 250 strips per pack

Sampling Needles

  • 3 included

Support & Service

Training

  • No special operator qualification required

Factory Check & Calibration

  • Available remotely via internet connection

Environmental Information

Radioactive Materials

  • None inside the device

Toxic Materials

  • None, excluding:
    • Li-ion batteries
    • Detection cartridges

Recyclability

  • Fully recyclable through manufacturer program
