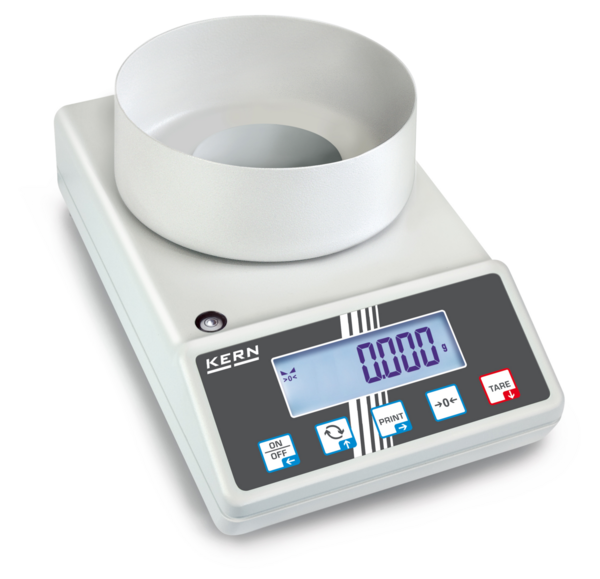

IoT-Line Precision Balance 572-30-Kern & Sohn

Product family: 572

All-rounder, e.g. as precision balance in the laboratory or in harsh industrial applications, ideal for the diverse possibilities of Industry 4.0 applications

Technical Data

Weighing capacity [Max] 240 g
Readability [d] 0,001 g
Units g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa
Linearity ± 0,003 g
Reproducibility 0,001 g
Stabilization time 3 s
Tolerance weighing
Tolerance weighing – type of signal acoustically, visual
Interfaces RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB-Device (optional), KUP, WiFi (optional)

Description

  • Thanks to the many typical laboratory functions, such as, for example, recipe function, percentage determination, combined with the high level of precision, the KERN 572 is a reliable partner for day-to-day work in the laboratory
  • The robust version, typical industrial functions, such as piece-counting, vibrationfree weighing and the large weighing ranges also make these balances ideal for all industrial applications, where a high level of precision is required
  • KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay
  • KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
  • Standardised, simplified concept of operation
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar
  • The robust aluminium diecast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use
  • Ring-shaped draught shield standard, weighing space ⌀×H 157×43 mm
  • Level indicator to level the balance precisely
  • Load support on the underside of the balance for models, Loop for underfloor weighing included with the delivery
  • Protective working cover included with delivery

Technical Data

Weighing capacity [Max] 240 g
Readability [d] 0,001 g
Units g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa
Linearity ± 0,003 g
Reproducibility 0,001 g
Stabilization time 3 s
Tolerance weighing
Tolerance weighing – type of signal acoustically, visual
Interfaces RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB-Device (optional), KUP, WiFi (optional)
Adjustment options Adjusting with external weight
Recommended adjusting weight 200 g (F1)
Ambient temperature -10 °C – 40 °C
Dimensions weighing surface (Ø) 106 mm
Material draught shield metal, lacquered
Material housing cast aluminium
Dimension housing (W×D×H) 180×310×85 mm
Dimensions ring-shaped draught shield – inner (Ø×H) 157×43 mm
Material weighing plate stainless steel
Net weight approx. 2,4 kg
Construction type of the scale Single-range balance
Weighing system Strain gauge
Underfloor weighing Eye (included in delivery)
Warranty Time 36 mon
GTIN/EAN number 4045761356825
